Audio line

Audio 50

$299.00 USD
$299.00 USD
Sale Sold out

A purpose-built WiFi audio and automation controller for themed attractions, escape rooms, and interactive installations.

Reactive Audio Control
Attraction builders need audio that reacts — a target gets hit, a sound fires. A guest walks past, the narration plays. Set the mood with a looping ambient track in the background. Each trigger fires one sound, and that same event can also simultaneously drive a relay or spotlight — coordinated without any extra hardware.

All-in-One Integration
Triggered MP3 playback, relay-controlled props, dimmable spotlights, and wireless RF inputs — all in one networked unit. Control from any browser or from Home Assistant without touching a laptop or opening an enclosure. Deploy one unit or a hundred; each is individually addressable and completely customizable.

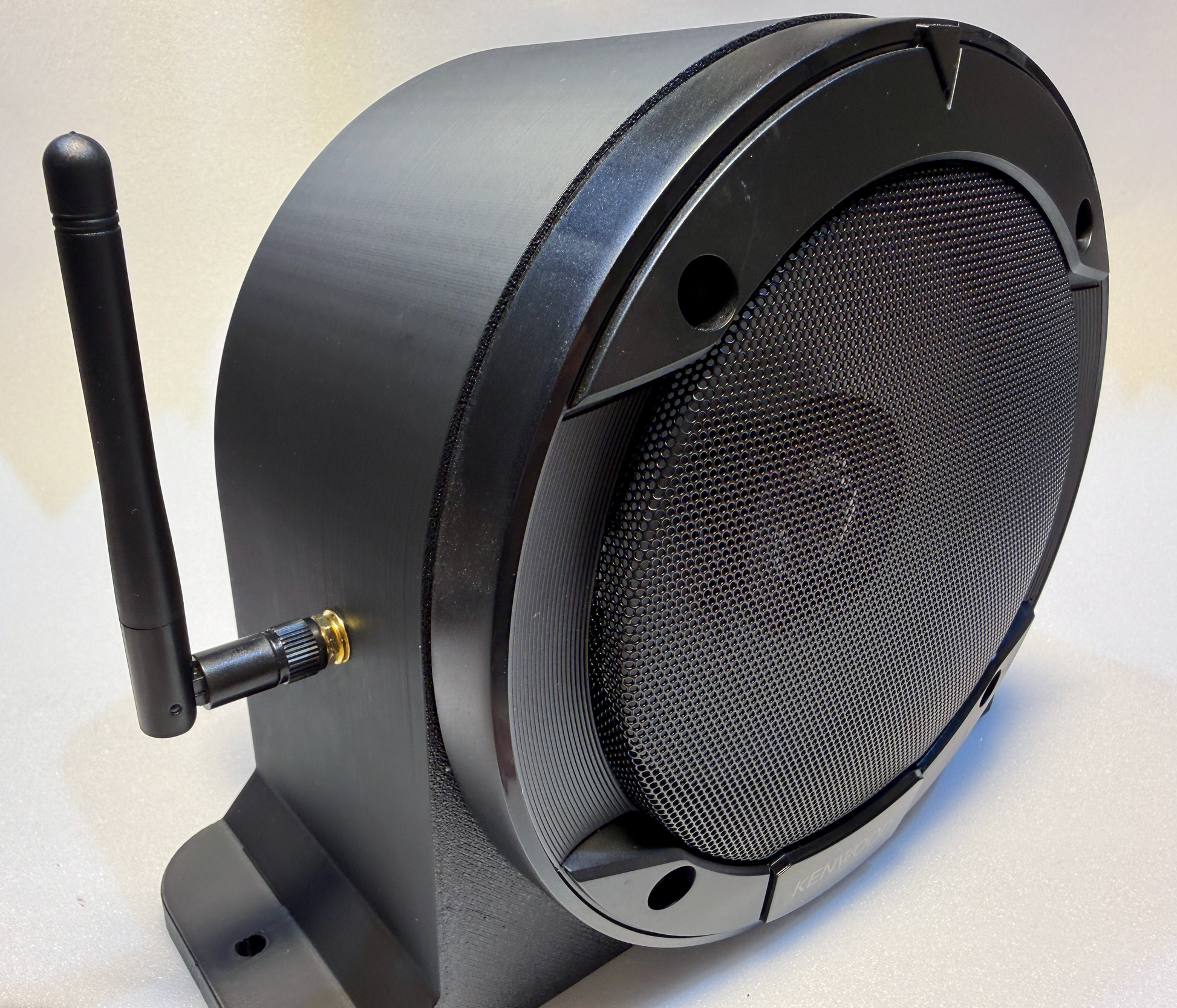

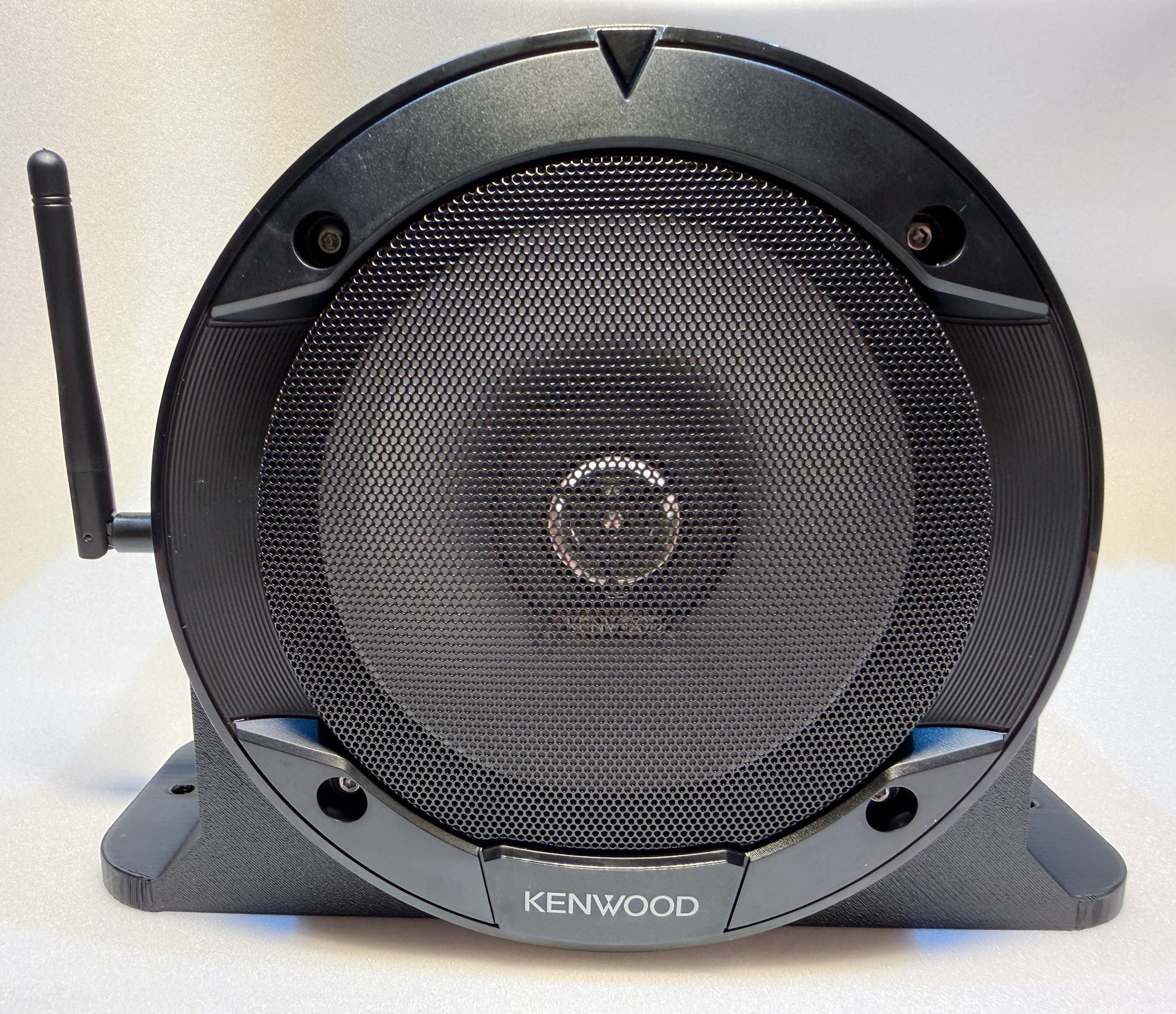

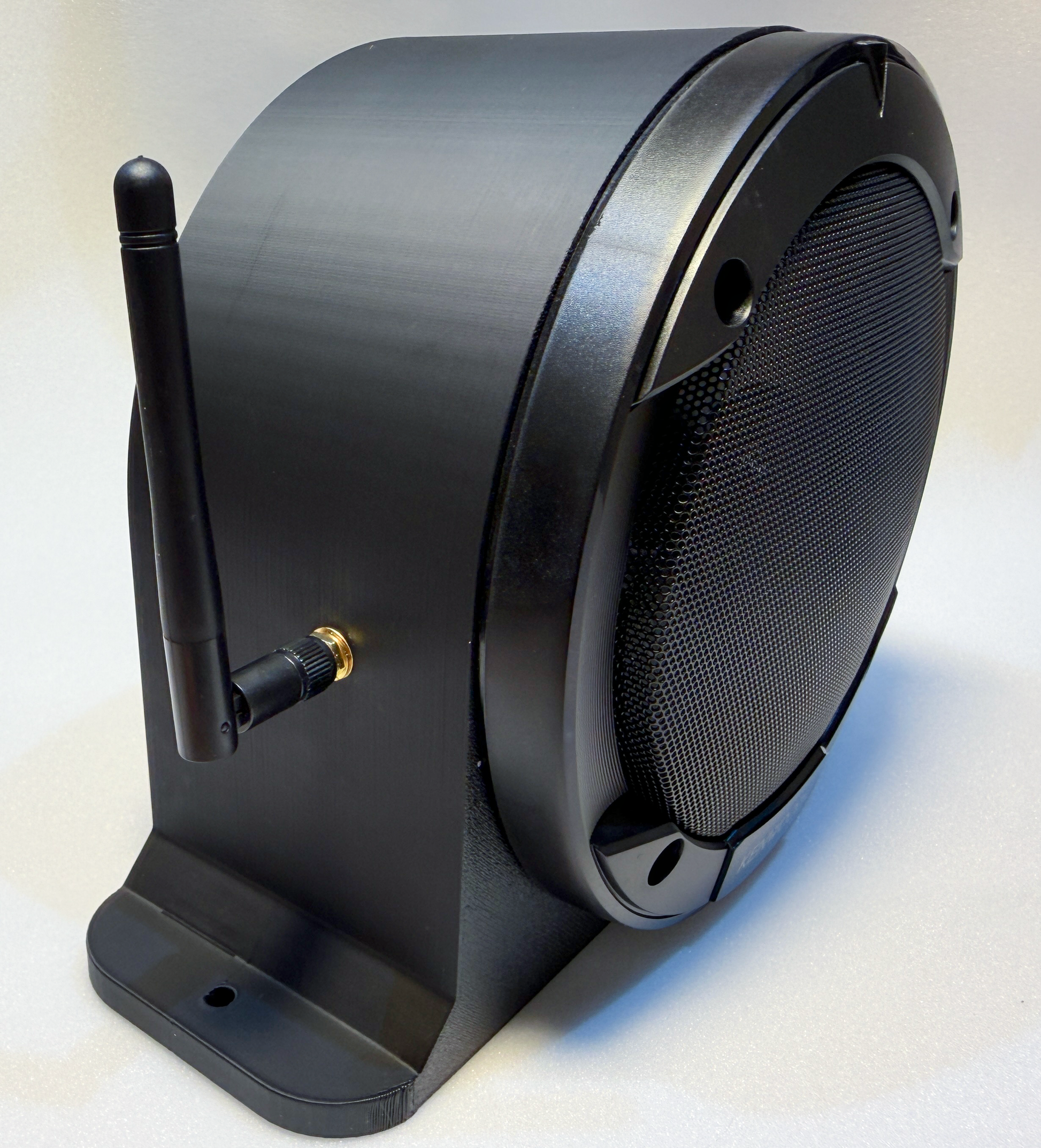

Built-In Amplified Speaker

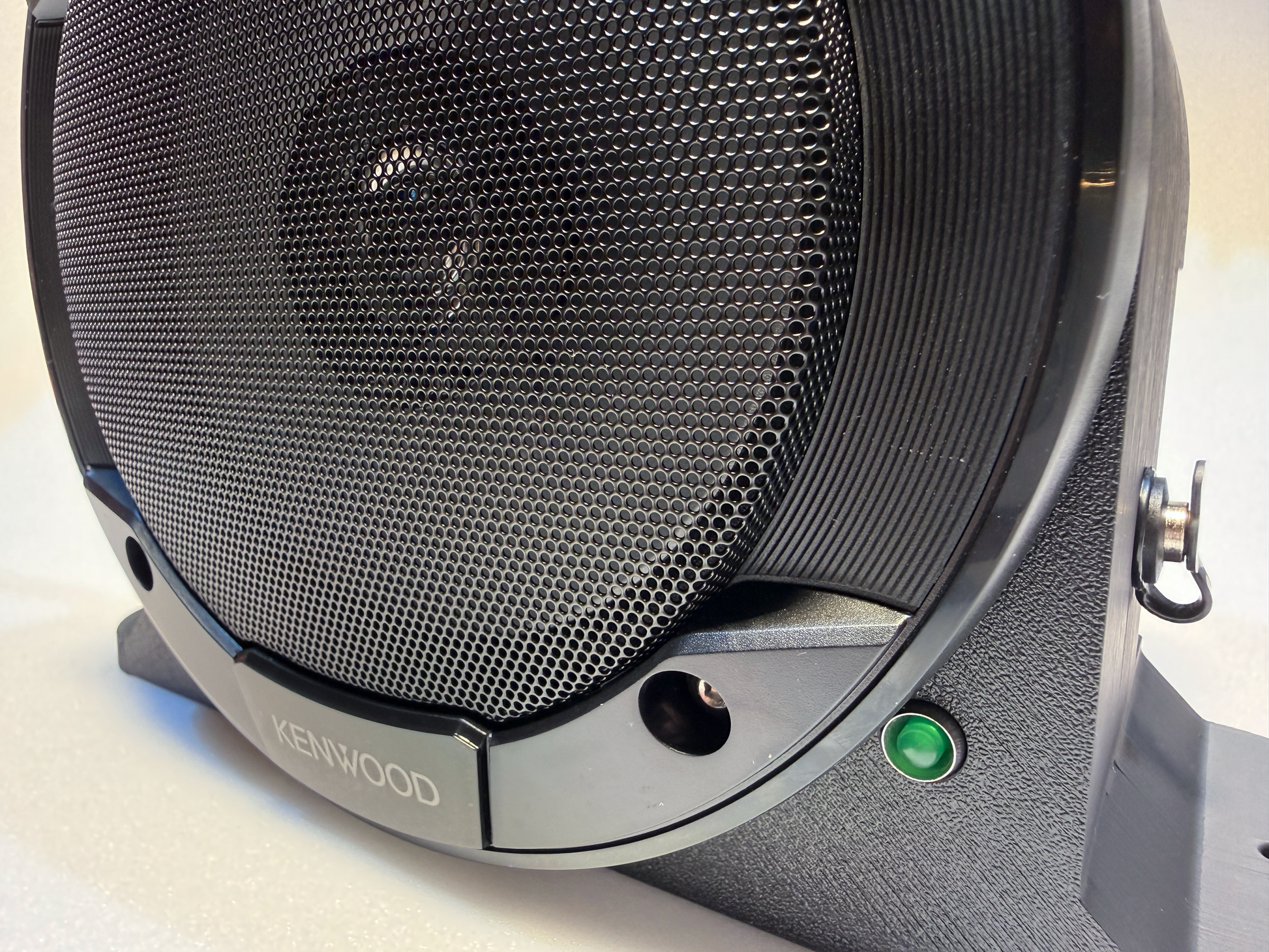

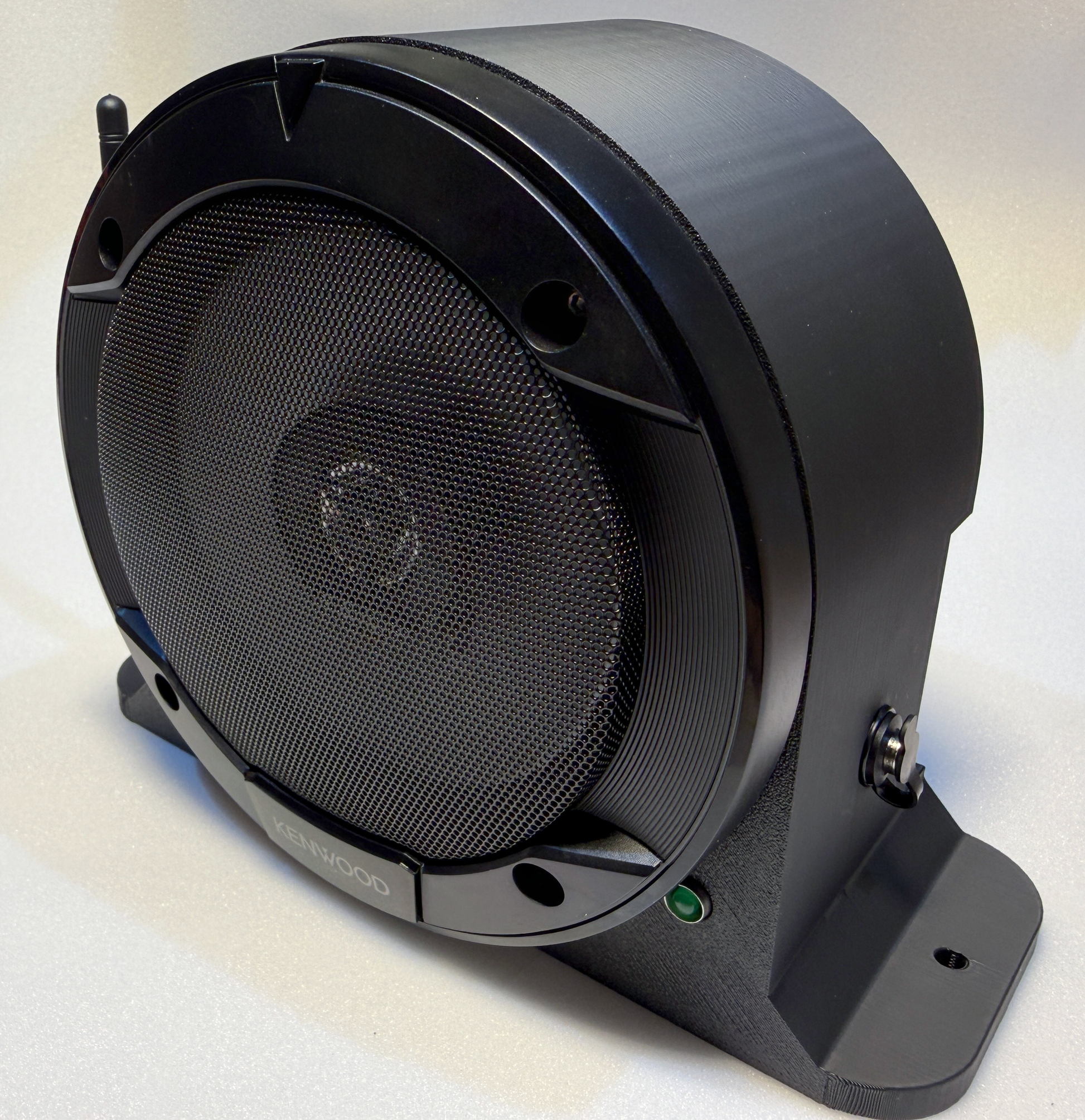

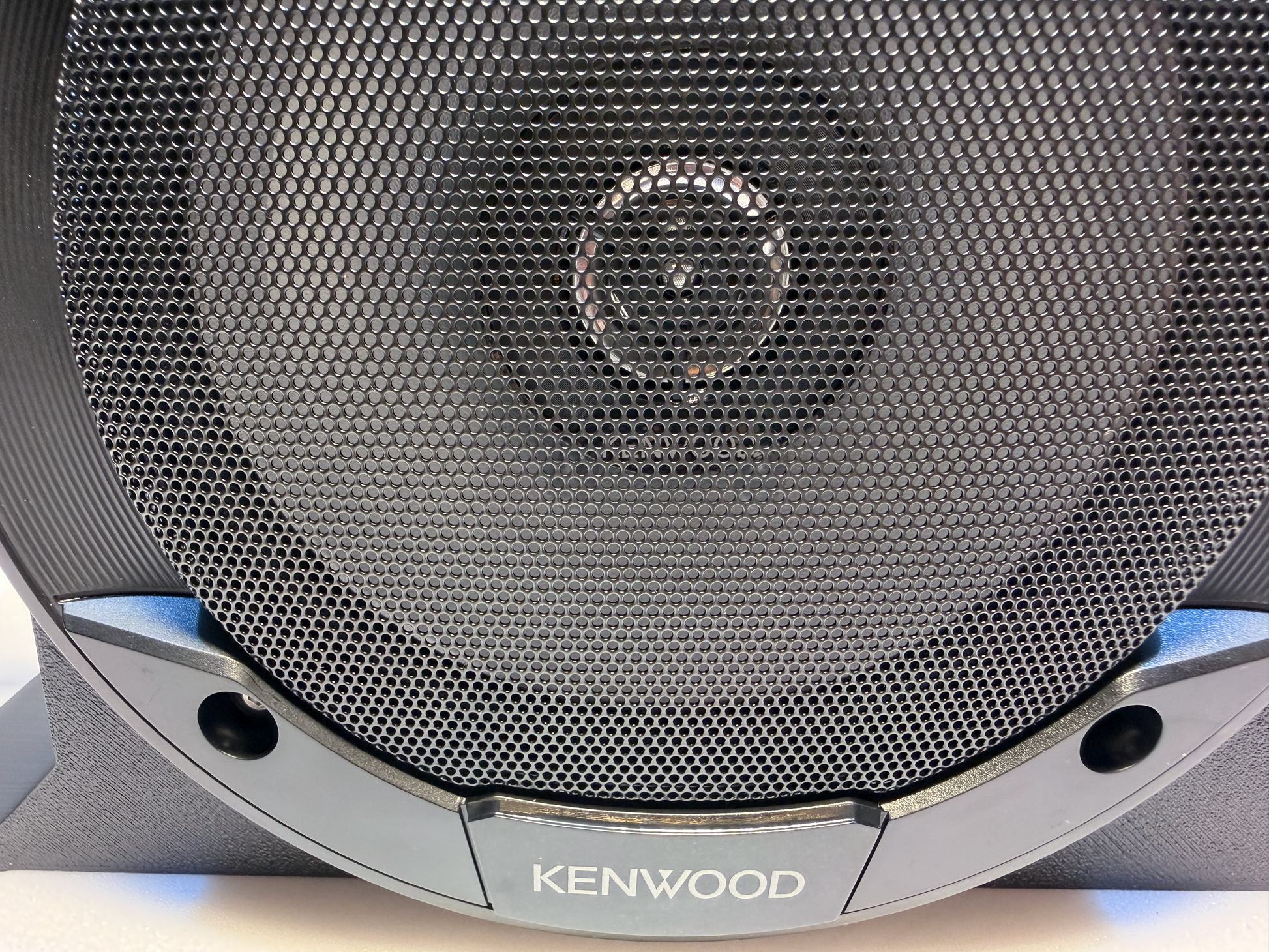

Every unit ships with a Kenwood KFC-1666S 6.5" 2-way speaker with tweeter — 50W of full-range audio with crisp highs — ready to run. No external amp, no extra components.

Proven in the Field
Already paired with the NeatoFX Target line for complete shooting gallery sound and scoring. Used in haunted houses, escape rooms, museums, and themed bars across the country.

Open Platform, No Lock-In
No subscriptions, no lock-in, you own it completely. Every device is tested before it ships. Guaranteed no DOA.

View full details

Deployment modes

Standalone

Connect a trigger wire, load MP3s onto the SD card, configure from your phone, done. Fires instantly on trigger. No laptop, no app.

Multi-trigger

Wire multiple inputs, assign different sounds to each. Multiple lanes, one device.

Automated

Fire via Wi-Fi from your home automation system — no direct wiring between devices needed.

Full system

Pair with Target IR and Display 4" for a fully coordinated game experience.

Playback modes

Four ways to play

Configure playback behavior from your phone — no code, no app to install, just open a browser.

  • Single file

    One trigger always plays the same MP3. Ideal for a single scare or specific cue.

  • Random from folder

    Each trigger picks a random MP3. Keeps repeat visitors guessing.

  • Sequential playlist

    Triggers play files in order. Perfect for narrated experiences.

  • Background loop

    A continuous ambient track plays on repeat. Events interrupt it momentarily, then it resumes automatically.

Built for venues, not living rooms

  • 50W output

    Loud enough for noisy venues without distortion

  • SD card storage

    Load MP3s directly — no streaming, no internet required

  • GPIO trigger

    Wire directly to a Target IR, button, or relay output

  • Wi-Fi trigger

    Fire remotely via home automation or any network event

  • Volume control

    Configurable via web interface — no physical adjustment needed

  • Web interface

    Configure everything from your phone browser — no app to install

Anywhere a sound effect makes the moment

  • Haunted houses

    Scare effects, ambient atmosphere, and prop-synchronized sounds triggered by input switch

  • Shooting galleries

    Hit confirmation sounds, countdown effects, and game-over audio — one Audio 50 per lane or shared

  • Scavenger hunts

    Audio clues that play when a hidden target is discovered — random or sequential mode keeps it fresh

  • Escape rooms

    Narrative audio that advances as players complete each puzzle step — sequential playlist mode

  • Museum exhibits

    Proximity-triggered narration or ambient soundscapes that activate when guests approach a display, or triggered by RF button

  • Themed restaurants

    Table-level sound moments — a thunder crack, a fanfare, or an ambient loop on guest interaction

Specifications

Audio 50

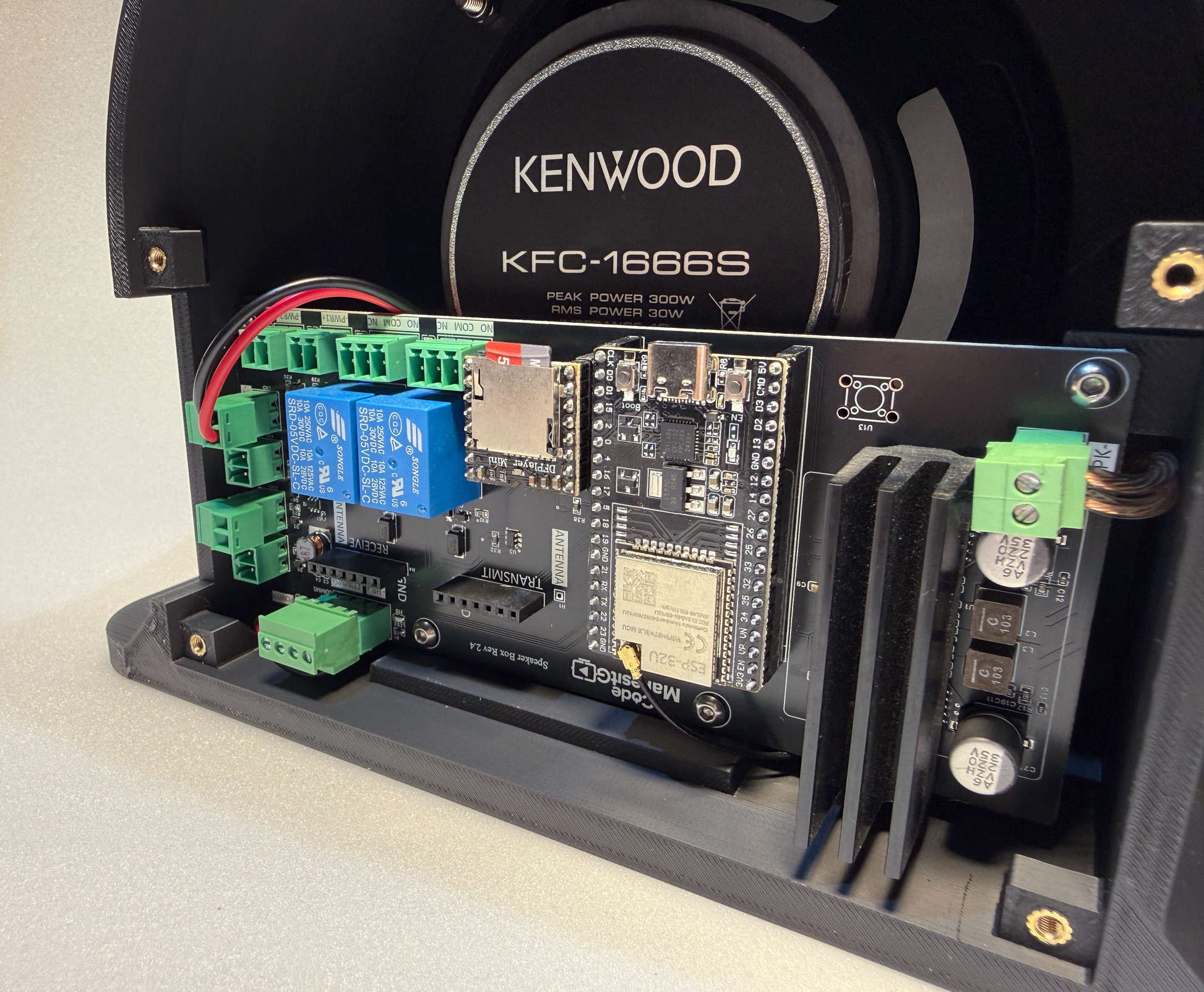

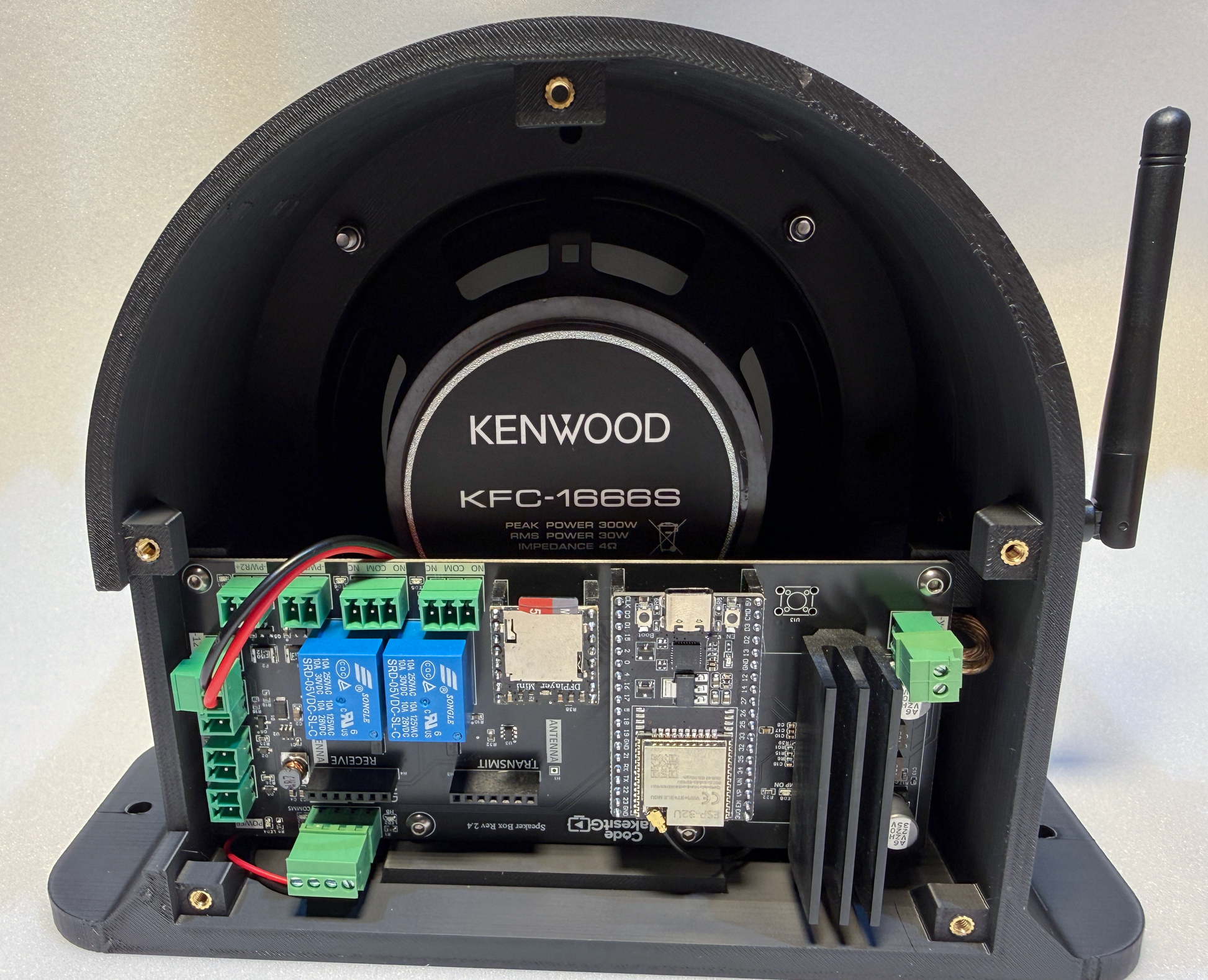

ProcessorESP32 (Espressif)
FirmwareESPHome — Home Assistant native, OTA updates
ConnectivityWiFi 802.11 b/g/n, 2.4GHz
AmplifierTPA3116D2, 50W
SpeakerKenwood KFC-1666S 6.5" 2-Way with Tweeter
Audio StorageSD card, up to 255 MP3 files (512MB included)
Audio ModuleDFPlayer Mini
Playback ModesRandom, sequential, looping, or assigned per trigger
Wired Trigger Inputs2 x digital, debounced
RF Inputs4 channels (A/B/C/D), 433MHz wireless
Relay Outputs2 x SPDT, 10A @ 12VDC — solenoids, air valves, motors
Dimmable Outputs2 x FET spotlight control, 4.2A each
Power Input12V DC
Volume ControlSoftware controlled, remembered across power cycles
Network ModesWiFi client or standalone hotspot
Platform IntegrationsHome Assistant, Falcon Player (FPP), MQTT
ConfigurationBrowser-based UI or Home Assistant — no app required
