NEATO-FX Motor Drive 40A
NEATO-FX Motor Drive 40A
Regular price
$120.00 USD
Regular price
Sale price
$120.00 USD
Quantity
Couldn't load pickup availability

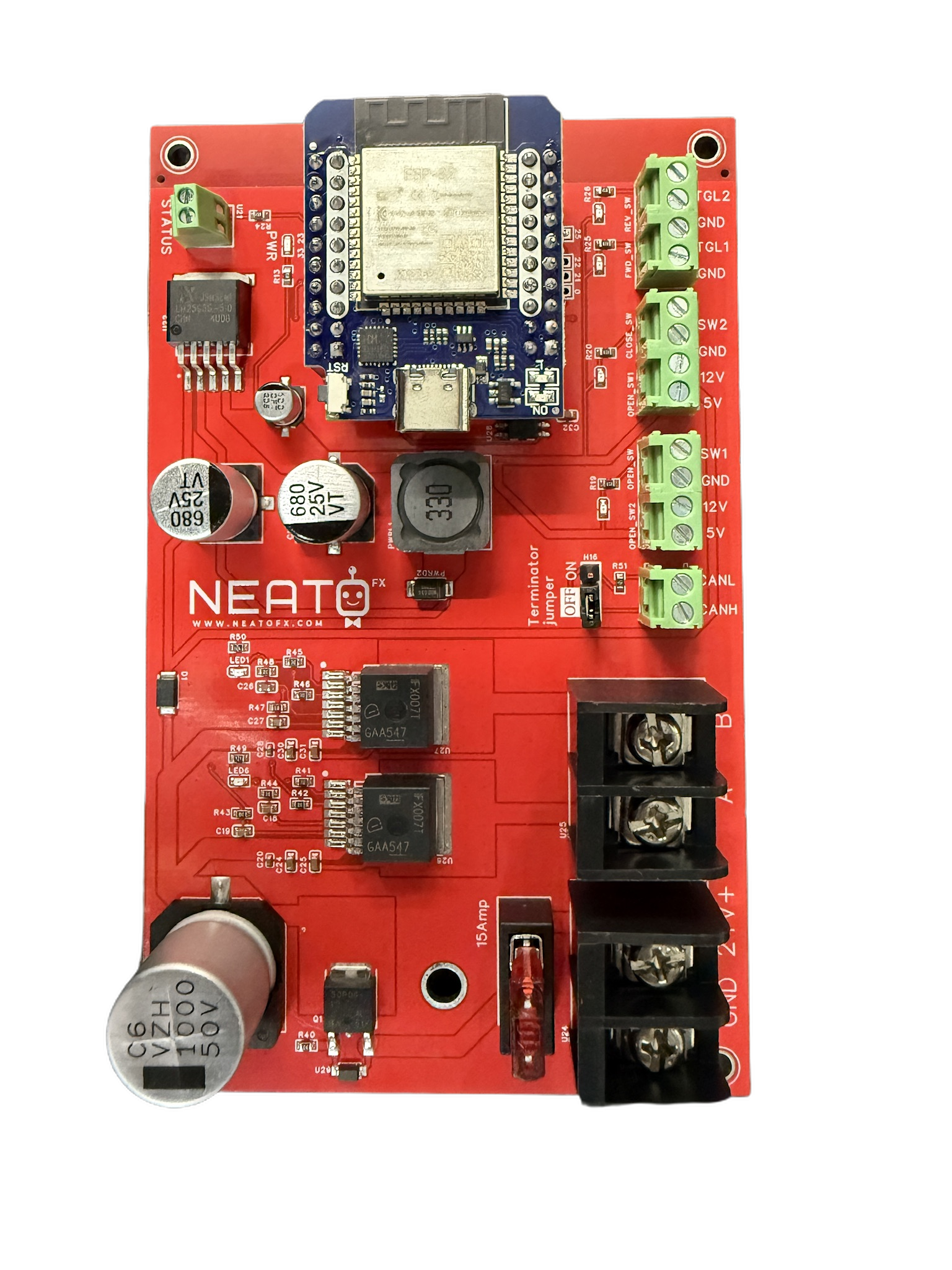

The NEATO-FX Motor Drive 40A is a WiFi-connected bidirectional motor controller built for animatronics, moving props, winch systems, and any application where you need to drive a DC motor with precision speed control and Home Assistant integration.
Built on the same open platform as the rest of the NeatoFX product line — configure from your phone, automate from Home Assistant, no custom code required.
What it does
- Bidirectional speed control — forward and reverse with PWM speed adjustment on both motor channels
- Stall detection — onboard current sensing monitors both channels and can stop the motor on overload
- Limit switch inputs — built-in open and closed end stop support, no external controller needed
-
Wired or WiFi control — forward/reverse/toggle inputs accept physical switches or WiFi commands
- CAN bus - network multiple boards with minimal latency
- Status output — signal another device when the motor is running
- Home Assistant native — ESPHome firmware, full automation support
- Reverse polarity protected with onboard fuse
Designed for
- Animatronic props and moving set pieces
- Winch systems and crane simulators
- Turntables and rotating displays
- Conveyor and track systems
- Any DC motor application needing WiFi control
Specifications
| Feature | Spec |
|---|---|
| Microcontroller | ESP32 Mini D1 |
| Firmware | ESPHome — Home Assistant native |
| Connectivity | WiFi 2.4GHz |
| Power Input | 12V DC, fused, reverse polarity protected |
| Motor Driver | Dual BTN8962TA Infineon NovalithIC half-bridge |
| Continuous Output Current | 40A (both channels combined, with thermal management) |
| Peak Output Current | ~50A |
| PWM Speed Control | Independent left and right channels, up to 25kHz |
| Current Sensing | Both channels — stall detection capable |
| Limit Switch Inputs | 2 x (open + closed end stop) |
| Manual Inputs | Forward, Reverse, Toggle (wired switches) |
| Relay Output | SPDT, 5VDC coil (NO/NC/COM) |
| Status Output | Digital signal output |
| LED Indicators | Power, relay state, PWM activity, all inputs |
| OTA Updates | Yes — firmware updates over WiFi |
Interested? Contact us to be notified when available or to discuss your project requirements.
